HANSBAR’S CORE PROCESS

HANSBAR is the brand name of cast iron produced by a horizontal continuous casting process in HANS materials Inc. Exceptionally high standards are maintained throughout the complete production process from raw material selection through to the finished product without any compromise being made. The continuous casting process is both unique and eco-friendly, giving excellent and assured casting quality.

PROCESS

The molten iron held in the concast holder provides a large head of iron above the graphite die, suppressing the risk of internal shrinkage defects in the pulled bar, whilst also allowing the lighter impurities in the iron to float upwards in the holder. This ensures homogenous material properties in the finished product.

PROCESS. img_01
scroll left scroll right

  • A.
    Holding Furnace

    The holding furnace has its own inductor to maintain the liquid iron at a constant temperature whilst also preventing impurities from entering the product.

  • B.
    Mould & Cooler

    Uniform and efficient cooling is critical to the products characteristics guaranteed by the specially designed graphite die encased in a water cooled jacket.

  • C.
    Drawing

    The practice of pulling the solidified bar from the cooling unit is as equally important. Our know-how is unique to HANSBAR.

  • D.
    Notching

    The solidified bar is notched at the most effective length to ensure minimum material loss in subsequent processes.

  • E.
    Cutting

    HANSBAR is cut into individual lots of the optimum length desired by the customer to ensure optimum quality and delivery.
PROCESS. img_02
PROCESS. img_03
scroll left scroll right

PERFECT PRODUCT

HANSBAR is continuously cast iron bar (grey and ductile / spheroidal graphite irons) produced by Tech-Young Iron Concast Inc since 1991. Our competitiveness is not simply just price and quality. We differ from other manufacturers by our adherence to ‘on time’ delivery and excellent communication with the customer. This guarantees that we are the customer’s perfect partner.

PRODUCT

HANSBAR is produced as round, square or rectangular shapes. HANS materials Inc. is the only manufacturer of continuous cast iron bar in South Korea and as such, it can be produced and supplied to the material properties and sizes required by the customer. Our technical team will suggest the optimum solutions to your problems.

PRODUCT. img_01

  • Homogenous &
    Defect Free

    HANSBAR has a uniform dense microstructure which virtually eliminates the risk of any internal defects.

  • Better
    Machinability

    HANSBAR has an excellent smooth surface finish with a uniformly distributed matrix thereby ensuring superior machinability.

  • Strong &
    Dense

    Due to the dense microstruc-ture, the pressure tightness and fatigue properties of HANSBAR are superior to sand cast material made to the same standard specification.

  • Silent &
    Durable

    HANSBAR exhibits low noise and vibration characteristics compared to steels with similar mechanical properties.
  1. PRODUCT.CONT. img_01

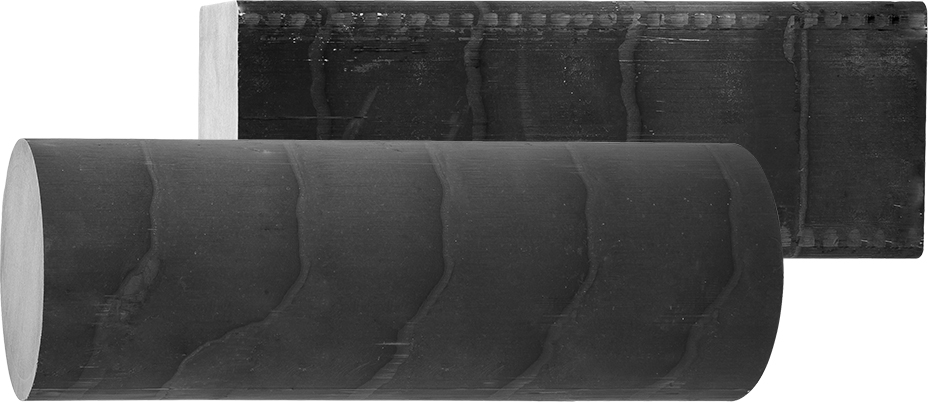

    1. As-cast Surface Finish After being drawn through the graphite mould, the surface finish of the bar is far superior to that of sand cast material.

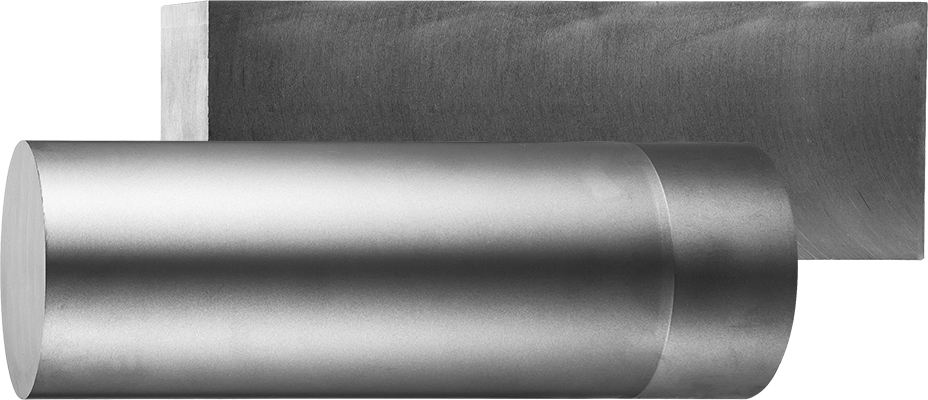

  2. PRODUCT.CONT. img_02

    2. Peeled or Milled Bar After peeling or milling the bars, the fine surface is optimally suited to further processing with precision and automated equipment.

  3. PRODUCT.CONT. img_03

    3. Large Bar Sizes In the case of large sized bars (up to 510 mm or 450x500), we produce these in separate metal moulds, guaranteeing the same quality as continuously cast HANSBAR.

  4. PRODUCT.CONT. img_04

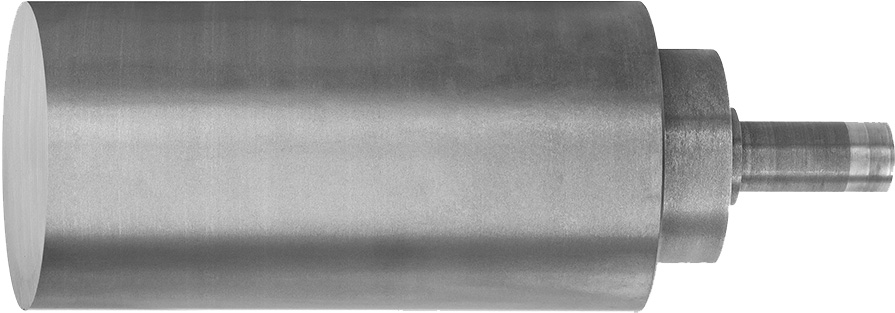

    4. Partially Machined Bar To reduce the cost of customers machining, we supply partially machined (turned) products to the individual customer’s requirements at a very reasonable price.

HANSBAR conforms to all International Standards. Research and Development is continually being carried out on materials for low temperature and high hardness applications to meet our various customers special requirements.

MECHANICAL PROPERTY

CHARACTERISTICS H2 H3 HD5 HD6
TENSILE STRENGTH (MPa) 160 - 230 200 - 270 480 - 580 580 - 680
HARDNESS (HB) 170 - 240 190 - 260 170 - 240 200 - 290
ELONGATION (%) 7 3
GRADE GREY SPHEROIDAL GRAPHITE (DUCTILE)
GC250 GC300 GCD500 / GCD600 /
65-45-12 / 80-55-06 /
EN-GJS-500 EN-GJS-600

STOCK STANDARD

SHAPE SIZE (mm)
ROUNDS Continous Casting: Φ25 - 260
Mould Casting: Φ260 - 510 (Max Length: 1000)
RECTANGLES Continous Casting: □34 X 64 - 190 X 250
Mould Casting: □220 X 220 - □450 X 500 (Max Length: 700)

QUALITY CONTROLS

We are very stringent with our control practices as HANSBAR products are destined to be machined. All our raw materials are of guaranteed quality and from stable sources. The whole production process is strictly monitored, completely without compromise.

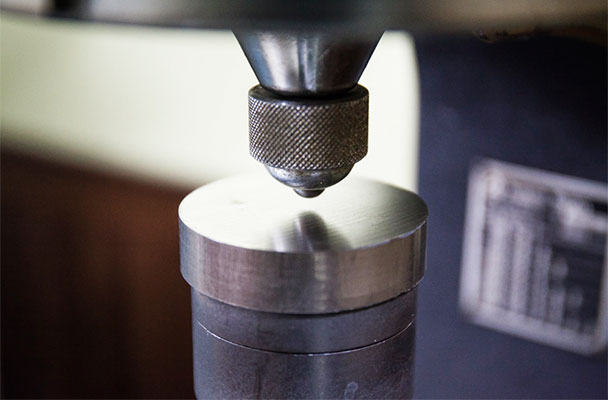

  • QUALITY CONTROLS. img_01

    Mechanical Property Measurement

  • QUALITY CONTROLS. img_02

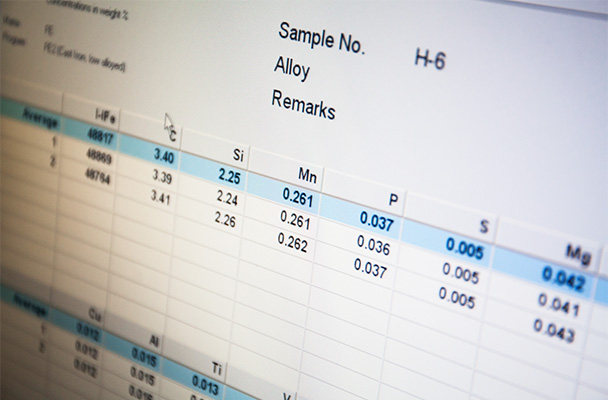

    Composition & Defect Analysis

  • QUALITY CONTROLS. img_03

    Micro-image & Size Measurement

    • Brinell Hardness
    • Tensile Strength
    • Ultrasonic Inspection
    • Spectroscopic Analysis
    • Microscopic Structure
    • Size Measurement for Machined Product

CERTIFICATE & CLASSIFICATION

CERTIFICATE & CLASSIFICATION. img_01

VARIOUS APPLICATIONS

Due to the dense microstructure and the extreme suppression of defects, HANSBAR shows superior characteristics when compared to regular sand casting products. Furthermore, when compared to steel with similar mechanical properties, it shows excellent machinability, with superior noise and vibration characteristics.

APPLICATION

Due to its excellent quality and mechanical properties, HANSBAR is being applied to critical components across industries for such as pneumatic and hydraulic parts, rotors for high vacuum pumps and compressors, gears and shafts for automobiles. By adopting HANSBAR in your products you will immediately increase your competiveness in your market.

HYDRAULIC VALVES • CYLINDERS.

HANSBAR ensures excellent pressure tightness and excellent machinability, immediately removing any concerns you may have had about equivalent sand cast or steel products.

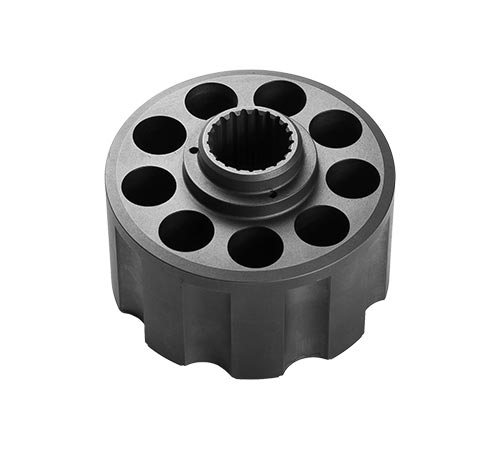

  • HYDRAULIC VALVES • CYLINDERS. img_01

    Cylinder Block for
    Construction machinery

  • HYDRAULIC VALVES • CYLINDERS. img_02

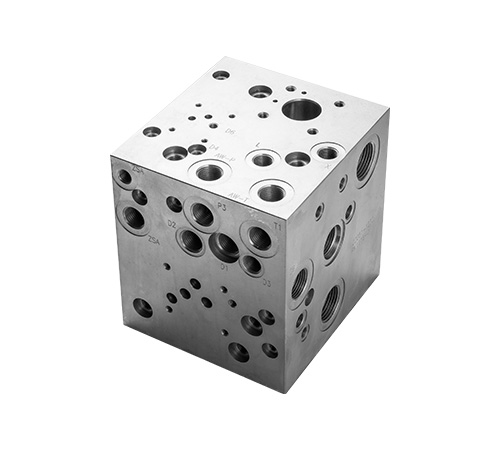

    Body Block for
    hydraulic system

  • HYDRAULIC VALVES • CYLINDERS. img_03

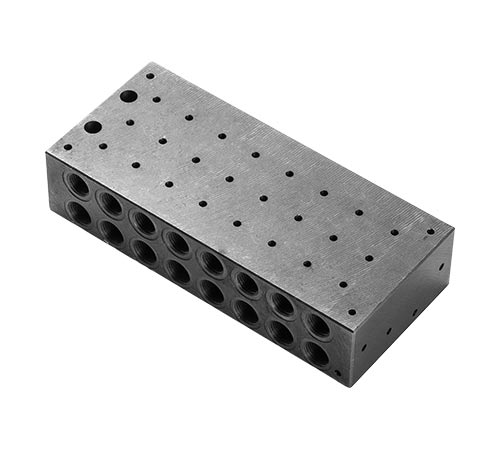

    Distributor Block for
    hydraulic system

ROTORS.

HANSBAR has excellent surface finish, lubricity, noise and vibration characteristics. In addition, it is the most preferable material for high-speed and high-precision parts, due to uniform internal density and being free of eccentricity, this resulting in perfect rotational balance.

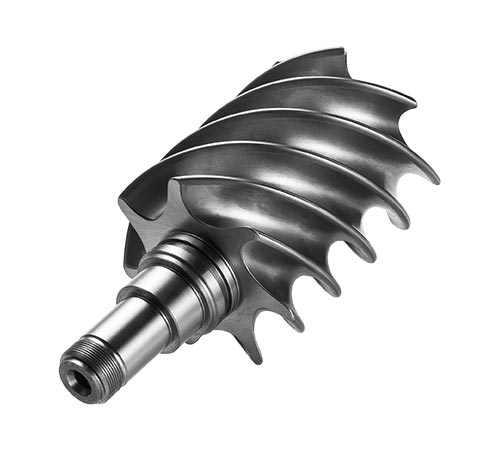

  • ROTORS. img_01

    Screw Rotor
    for Compressor

  • ROTORS. img_02

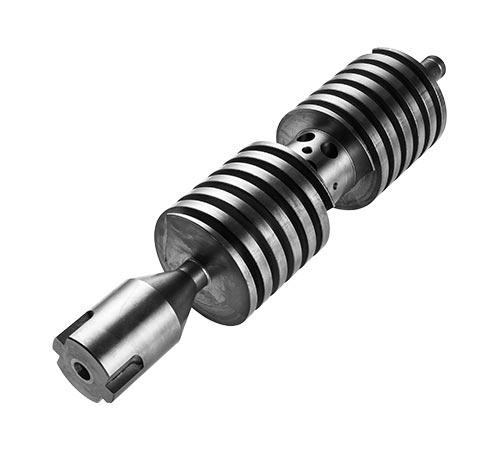

    Rotor
    for Vac. pump

GEARS & PULLEYS.

HANSBAR is the optimal material for noise and vibration suppression (good damping capacity), also having comparable durability with forged steel.

  • GEARS & PULLEYS. img_01

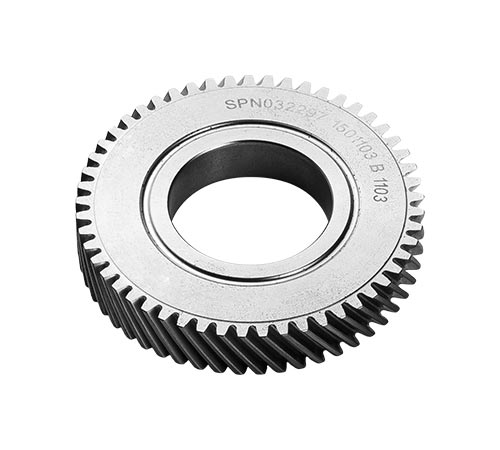

    Gear
    for Automobile

  • GEARS & PULLEYS. img_02

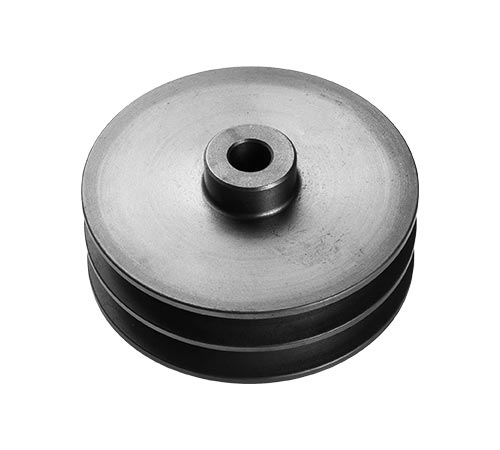

    Pully
    for machine tool

OTHERS.

HANSBAR has a much finer surface smoothness compared to sand cast products. This makes it an excellent choice for industrial components such as rollers and molds.

  • OTHERS. img_01

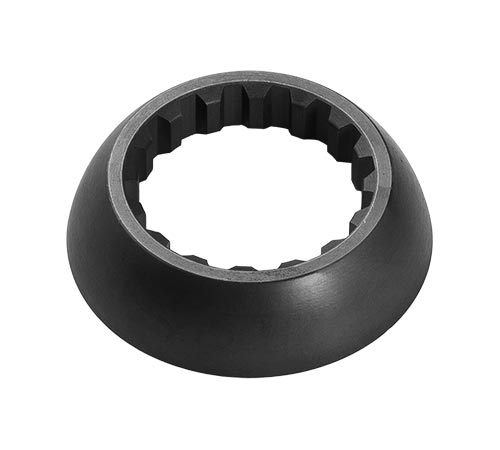

    Ball Guide

  • OTHERS. img_02

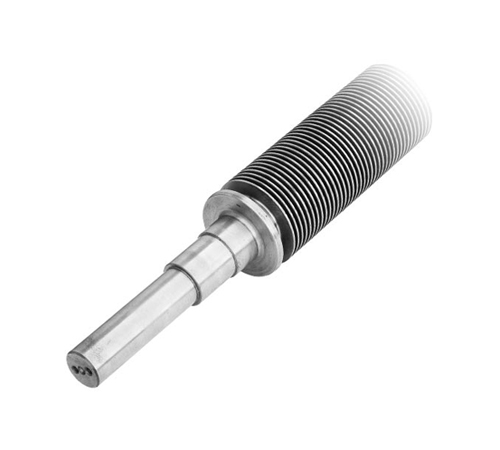

    Roller

  • OTHERS. img_03

    Turret

HANSBAR’S HERE.

We are constantly seeking technical advancement and innovation in order to improve our already established world-class technology. However, we remain faithful to our basic production principles, but with due consideration and respect for others. These are the origin of our core values, namely passion, persistence, positive thinking, and harmony.

ABOUT US

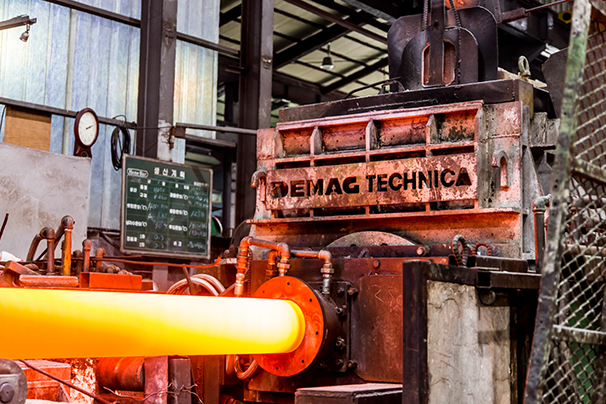

HISTORY HANS materials Inc. the registered owner and manufacturer of HANSBAR, began operations in 1972 as a copper alloy casting company. In 1990, the Company introduced the first horizontal continuous casting iron manufacturing line in South Korea. Ever since, we have supplied grey and spheroidal graphite continuous cast iron bars. In 1998 we restructured our Company, focusing only on our continuous casting iron business. As a result, we have grown up to be what we are today, in addition to being the only concast bar manufacturer in South Korea.

  • ABOUT US img_01
  • ABOUT US img_02
  • ABOUT US img_03

ENVIRONMENT HANSBAR believes in the eco-future of ‘Planet Earth’. This is why we introduced the environmentally friendly continuous casting process in order to improve the working environment. We intend to progress further to try to become a leader in environmental protection. We are sure that this small effort will add to the happy co-existence of all, both the Earth and ourselves.
